Horizontal Forging Press Machine for Brass Production Line
- Brand: IPOWER
- Type: IPH160SGWL
- Machining Parts: LPG Cylinda Valve, ball valve,
- Machining Material: Brass,bronze,copper,iron
Main Function and features:
The machine is mainly used for hot forging technology of brass products, it is highly automtical machine.
The horizontal type of forging press is very suitable for making half mold products(open mold).
The machine working pressure, stroke can be adjusted in the range of the parameters within the
Istp heacsii caadtvioann.tages of simple and flexible operation, low noise, stable pressure, fast movement,high
efficieny,save labor, and cost -effective machine.
The machine is widely used for producing ball valve bodies, gas valve, gate valve,stop valve, check valve,
angle valve pipe fittings and other kind of brass products.
Video Link: https://youtu.be/mWPXy-dYgwI

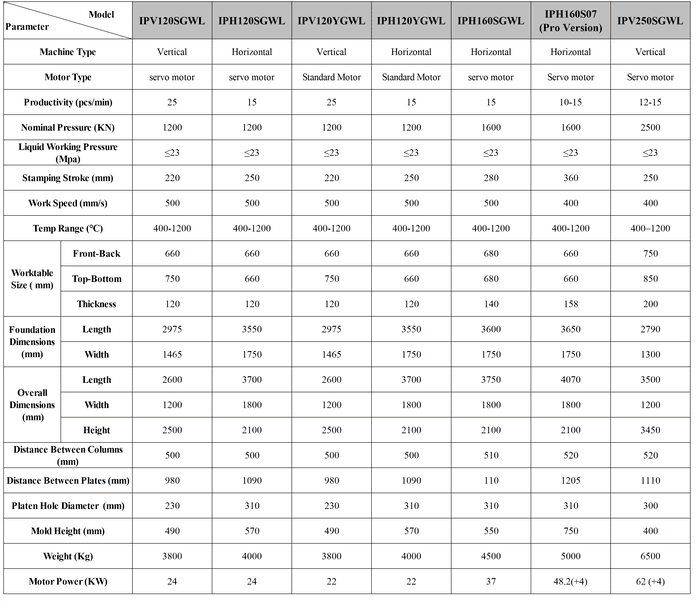

EQUIPMENT PARAMETERS
Model
IPV120SGWL
IPH120SGWL
IPH160SGWL
IPV120YGWL
IPH120YGWL
parameter
Type
Servo vertical
Water cooling
Servo horizontal
Water cooling
Servo horizontal
Water cooling
Ordinary vertical
Water cooling
Ordinary horizontal
Water cooling
Productivity (pcs/min)
25
15
15
25
15
Norminal
Pressure (KN)
1200
1200
1600
1200
1200
Liquid Working Pressure (Mpa)
≦23
≦23
≦23
≦23
≦23
Stamping Stroke
(mm)
220
250
280
220
250
Working Pacing (mm/s)
500
500
500
500
500
Table Size
(mm)
Bofore and after
660
660
680
660
660
Around
750
660
680
760
660
Thickness
120
120
140
120
120
Basic Size (mm)
Length
2975
3550
3600
2975
3550
Width
1465
1750
1750
1465
1750
Boundary Dimension
(mm)
Length
2600
3700
3750
2600
3700
width
1200
1800
1800
1200
1800
Highly
2500
2100
2100
2500
2100
Distance Between Columns (mm)
500
500
510
500
500
Distance between plates (mm)
980
1090
110
980
1090
Platen hole diameter (mm)
230
310
310
230
310
Mold Height (mm)
490
570
550
490
570
Weight (Kg)
3800
4000
4500
3800
4000
Motor Power (Kw)
24
24
37
22
22
FAQ
Q1:How to guarantee the Quality of hot forging press machine?
A1:We are ISO 9001-2008 certified company. we have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q2:What's the Advantage of iPOWER hot forging press machine?
A2:Our advantage :
1. The technology is imported from Germany and we have experienced engineers who have been worked in this field for more than 20 years, and some new engineers who has production experiences, know-how the machine working in pratice.
2. High precision,most competitive prices, fast delivery.
3. With good company culture, our employees are responsible-oriented, friendly-oriented,and diligent-oriented. our machines are featured by strict tolerance, smooth finish and long-life performance.
Q3:what are the machining equipments?
A3:Our machining equipments include milling machines, turning machines, stamping machines, hobbing machines, automatic lathe machines, tapping machines, grinding machines, screw machines, cutting machines and so on.
Q4: What shipping ways you use?
A4:Generally speaking, we will ship them by sea. This way can save our customers a lot of freight fee.
Q5:What materials can you handle?
A5:Brass, bronze, copper,aluminum, titanium, for LPG Cylinda Valve, ball valve, plug valve, steam valve, stop valve, gas valve, etc.
Q6:Can you provide detailed proposal,photos, working viedo, and specifications of the machines?
A6: Yes, we can provide all detailed information of our machines. We can give full proposal after receiving drawing of the products.
