Machine Features

1.This machine is equipped with fully shielded cover for safety consideration. It is

automatic uploading, feeding, and deburring. The precision of length cutting is +-0.01mm, and   the cutting mode can be selected as automatic or manual to make sure the safety in the trail run.

2. Feeding using mechanical transmission device. Over 30 pieces of bars can be loaded in the same time, and the machine is working automatically, one person can manage for several sets of machines.

3. The main board circuit adopts time-delay protection and frequency conversion control

system, so that the cutting action has five-level speed regulation and early warning function.

According to the length of the cut material can choose continuous or spot cutting mode, which can effectively ensure length accuracy of the cut product and improve the safety of the saw

blade.

4.The power consumption of the whole machine is small, and the use is fast and convenient.

This machine can cut round, hexagonal, square, octagonal and other brass/aluminum materials.

Video link: https://youtube.com/shorts/eAZ5pNMTS9I?si=UiB4K8iO4sEwIdgH

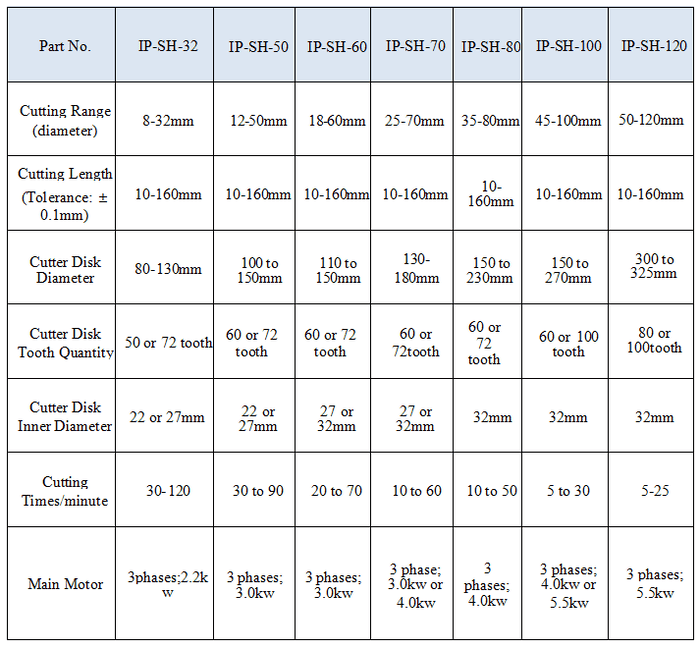

                          Main Parameters

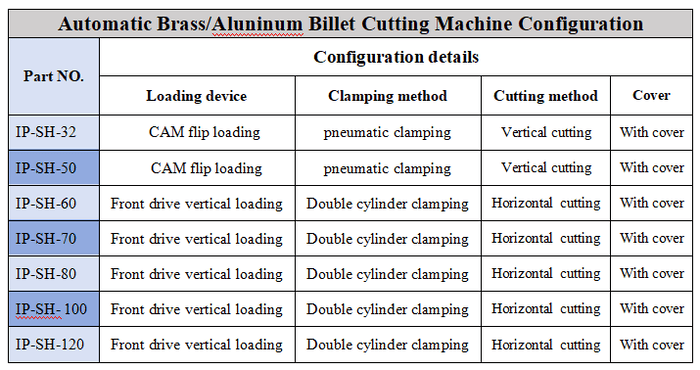

                         Main Configuration
