Ball Valve Body Rotary Transfer Machine

Update: 2018/6/14      View:
  • Brand:    IPOWER
  • Type:    IP-01
  • Machining Parts:    Ball valve
  • Machining Material:    Brass,bronze,copper,stainless steel,steel,aluminum,titanium,iron
Introduction

Video link: https://youtu.be/hfOKGZT_FvQ

Main Features:

1.PLC Programming is adopted on the machine;

2.Using high precision rotating table;

3.The power unit is using hydraulic control feeding,the speed can be adjusted;

4.The fuel feeding pressures of power units and fixtures can be adjusted separately;

5.The tapping power unit is using variable frequency motor;

6.Easy to operate and convenient to maintain.


Processing materials:                      Brass HPb59-1

Machine distribution:                       Eight-positions with ten axles

Machining speed:                            ≈8~10s per piece

Machine power:                              ≈15KW

Area:                                             2.3x2.3m2


Detailed Images:

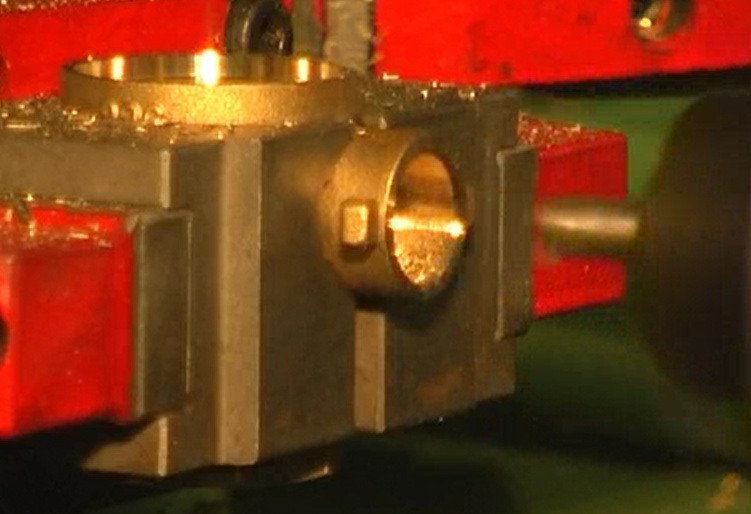

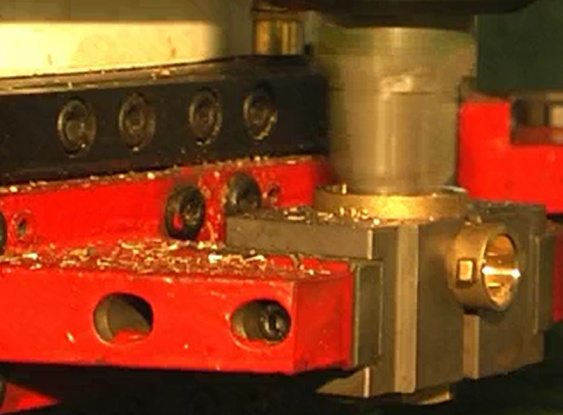

Machine Station: Horizontal rough machining, Upward rough machining.
Power: 2.2KW, 2.2KW
Machining speed: 1600r/min, 1600r/min

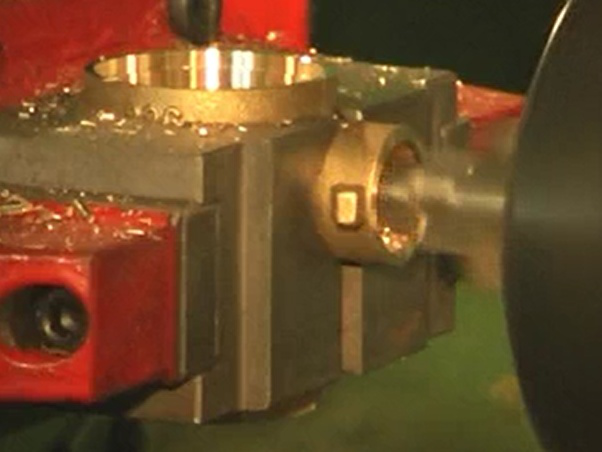

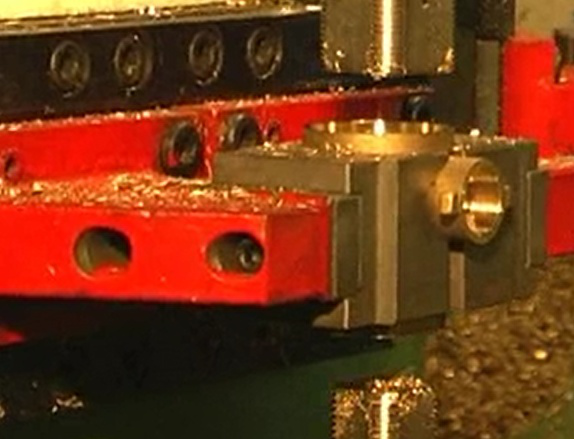

Machine Station: Downward rough machining, Upward finish machining.
Power: 2.2KW, 2.2KW
Machining speed: 1600r/min, 1800r/min

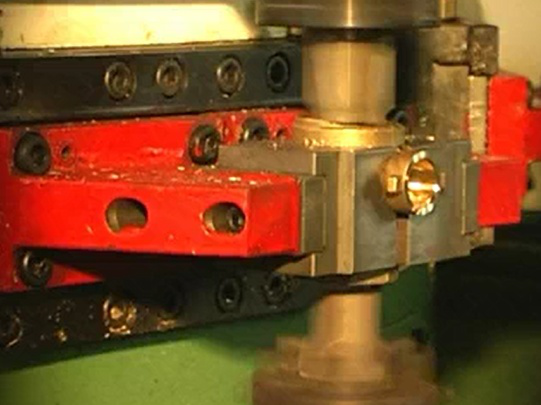

Machine Station: Downward finish machining,


Power: 2.2KW


Machining speed: 1800r/min

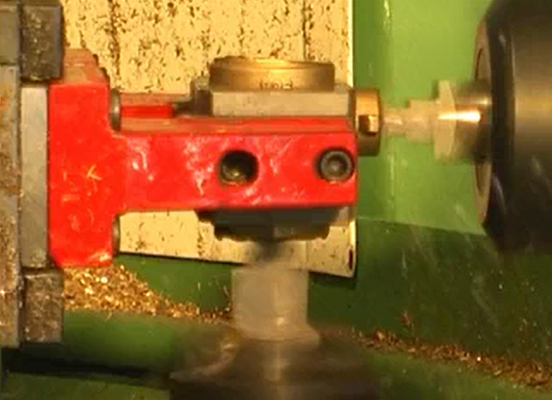

Machine Station: Horizontal finish machining.
Power: 1.5KW
Machining speed: 1800r/min

Machine Station: Horizontal finish machining.
Power: 2.2KW
Machining speed: 1800r/min

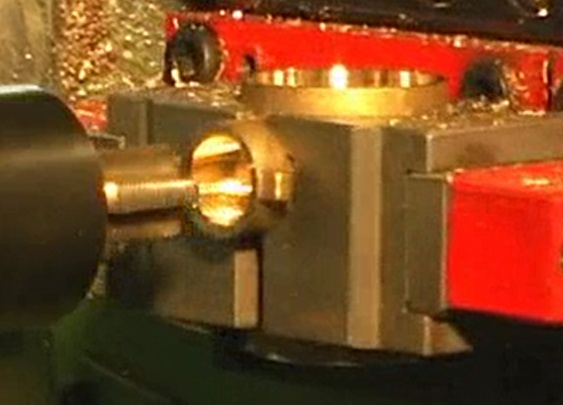

Machine Station: Horizontal tapping.
Power:  2.2KW
Machining speed: 1000r/min

Machine Station: Downward tapping, Horizontal tapping.
Power: 2.2KW, 2.2KW
Machining speed: 600r/min, 800r/min
